Hydraulic Tilting Table for Marble Granite
 |
 |

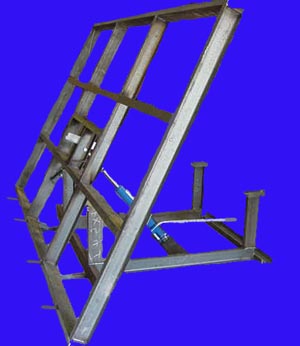

Ezlay hydraulic tilting table. Steel frame with 8-ton hydraulic pneumatic jack no finished top and not painted. If you do marble or granite work the EZLAY can pay for itself with your first job. Have you ever broken a slab laying it down? Never break another one. The EZLAY is constructed of heavy 4" 5.4 channel, mig welded and will last for years. The EZLAY has 1-inch round hinge pins, 1/2 struts rods for extra support, built in stops, and tilts to 85 degrees. Each EZLAY is custom built in a precision jig ensuring high quality. It can be bolted to the floor or just put some weight on the back channel to keep it steady. The top of the table is 10' X 6' and comes with an 8-ton jack with a manual jack handle. That's 16,000 lbs of lifting power. Custom fitted removable 1x1-14gauge supports pins allow full use of work area. Because EZLAY comes unpainted and does not have a finished top you save thousands! Most of my customers use 3/4 plywood with 6" wide strips of 1/2 DoRock or fiber board. This prevents cutting into to 3/4 plywood stopping you from eating up cutting blades and gives a channel for water runoff. Table comes ready to use no assembly required.
Shipping weight about 644 LBS footprint 72 inches X 54 inches top of work area 120 inches X 72 inches 24" height.
NEW Hydraulic pneumatic jack NEW
Air over hydraulic
No more jacking by hand and it's faster, using only 80 PSI .8 CFM
More photos on facebook EZlay Tilting Table | Facebook

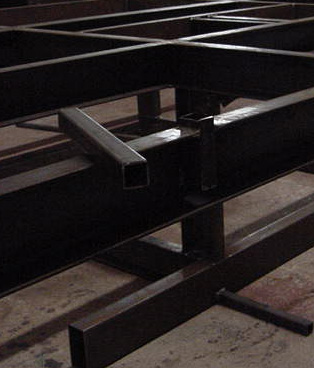

Removable 1X1 titling support pin
To order call Richard
(504) 343-8091
2459 Odin
New Orleans, LA 70122
Email: trainmax@yahoo.com
Cost of table
| NEW With hydraulic pneumatic Jack NEW $3400.00 |
. Buyer pays all shipping. Can be picked up. Please allow one week for delivery.
100% Satisfaction Guaranteed price does not include shipping.
$500.00 Deposit required for order Please Call to send deposit; balance due before shipping.

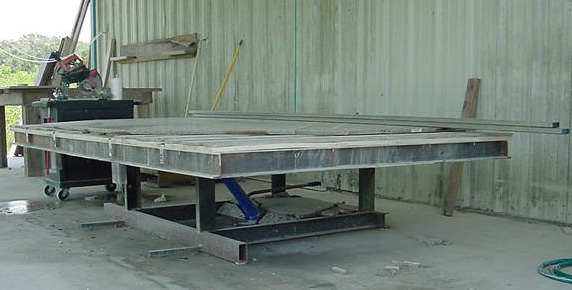

Table in use at E&S Marble
NOW AVAILABLE Rotating Tilting Table
Table rotates 360 degrees with locking passion at every 22.5 degrees also has a manual brake that can be locked at any angle.
Steel frame with 8-ton hydraulic jack no finished top and not painted. 2" center pin with pillow block bearings Table comes ready to use no assembly required.
Has 1-inch round hinge pins with sealed pillow block bearings, 1/2 struts rods for extra support, built in stops, and tilts to 70 degrees.
Table demotions 120" X 72" X 34" tall.
This table needs to be bolted to floor.
$6800.00
No more jacking by hand and it's faster, using only 80 PSI .8 CFM
Buyer pays all shipping can be picked up. Please allow 4 weeks for delivery.
from New Orleans, LA
100% Satisfaction Guaranteed Price does not include shipping.
$1000.00 Deposit required for order Please Call to send deposit: balance due before shipping.
More Photos on Facebook EZlay Tilting Table | Facebook
Made In The
USA
To order call
Richard Jacobs
(504) 343-8091
2459 Odin
New Orleans, LA 70122
Email: trainmax@yahoo.com
Thank You for your time!!
